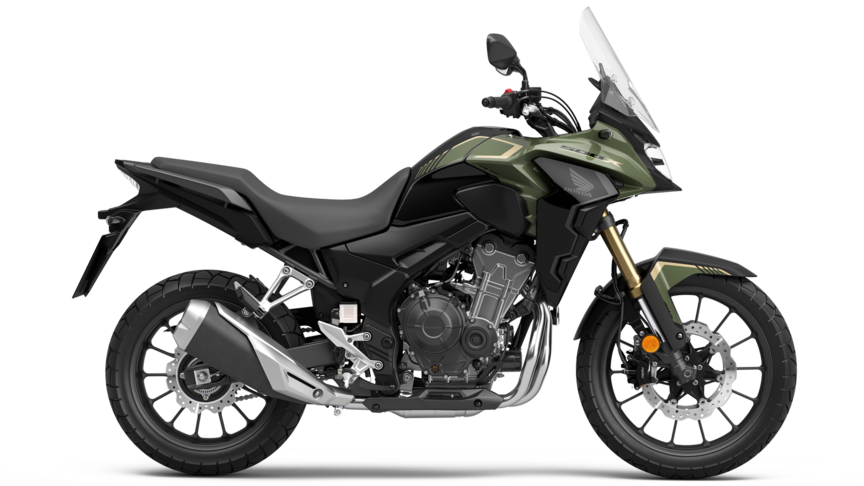

2021 Honda CB500X

2021 model year. Yours for £6,249

Pricing and information



For 2021, Honda’s A2 licence-friendly, popular, compact adventurer receives new graphics and three new colour schemes for 2021, including a touch of Africa Twin. The CB500X is also now homologated for EURO5.

Features of the 2021 500X

From urban commuter to weekend explorer, the CB500X is ready for anything. Its styling has a sharp adventure edge, and is complemented by long travel suspension, high-specification single-tube shock absorber, comfortable rider ergonomics and a 19-inch front wheel.
  • Strong, tough adventure styling
  • Tapered handlebars and wide steering lock
  • Long travel suspension and 19-inch front wheel
  • LCD instrument display with Gear Position and Shift Up Indicators

Colour Options:

The 21YM CB500X will feature a tribute to the CRF1100L Africa Twin with it's striking red rear sub frame. The three new colour and graphics schemes are:
  • Grand Prix Red
  • Matt Gunpowder Black Metallic
  • Pearl Metalloid White


A range of Genuine Honda Accessories is available for the 2021 CB500X. They include centre stand, side wind deflectors, knuckle guards, heated grips, 35L top box, rear carrier, pannier mounts, pannier cases, tubular fairing protector frames, fog lights, tank bag, seat bag, ACC charging socket, smoked screen, wheel strips and tank pad.

Find out more

Please call Steve on 01492 535959 to be kept up to date with availability. Finance and national delivery is available and part-exchanges are considered.


Bore × Stroke (mm)67mm x 66.8mm
CarburationPGM-FI electronic fuel injection
Compression Ratio10.7:1
Engine Displacement (cc)471cc
Engine TypeLiquid-cooled 4-stroke DOHC parallel twin
Max. Power Output35kW / 8600rpm
Max. Torque43Nm / 6500 rpm
Throttle Bore34
C02 Emissions (g/km)80
ABS System2 channel
Brakes Front310 mm x 5 mm disc with two piston caliper
Brakes Rear240 mm x 5 mm disc with single piston caliper
Suspension FrontConventional Telescopic, 41mm, pre-load adjustable
Suspension RearProlink mono with 5 stage Pre-load adjuster, steel square pipe swingarm
Tyres FrontOn-Off Pattern
Tyre Size Front110/80R19M/C
Tyre Size Rear160/60ZR-17M/C
Tyres RearOn-Off Pattern
Wheels FrontMulti-Spoke Cast Aluminium
Wheels RearMulti-Spoke Cast Aluminium
Battery Capacity (VAh)12v 7.4Ah
Caster Angle27.5°
Dimensions (L×W×H) (mm)2,155mmX825mmX1,410mm
Frame typeSteel diamond
Fuel Tank Capacity (Litres)17.7 L
Fuel Consumption28.6km/L / 3.5l/100km
Ground Clearance (mm)180mm
Kerb Weight (kg)197kg
Seat Height (mm)830mm
Trail (mm)108mm
Wheelbase (mm)1,445mm
ClutchWet multiplate, A.S.clutch
Final DriveChain
InstrumentsDigital Speedometer, Digital Bar Graph Tachometer, Dual Trip Meters, Digital Fuel Level Gauge & Fuel Consumption Gauge, Digital Clock, Water Temp, Gear position indicator
Tail LightLED


Tech Machines Officials reveal the 2021 CB500X features

2021 CB500X Walkaround with VisorDown


THE highly successful range of Honda 500cc machines has been given a 2021 update, with new colours, graphics and Euro5 certification. The updates affect the Honda CB500F, CBR500R, and CB500X models, with the only other bike in the range to use this engine, the CMX500 Rebel, going through an overhaul earlier in the year.

- Simon Hancocks, VisorDown

HONDA has sent us the CB500X to try on for size for a couple of weeks, and after a couple of rides, this could well be one of the leading mid-size adventure-tourers for the A2 category. But before I get ahead of myself, let’s break down what this Honda CB500X is all about.

- Alex Strange, VisorDown
